Club UH-550
Club UH 550 conSTONE slate

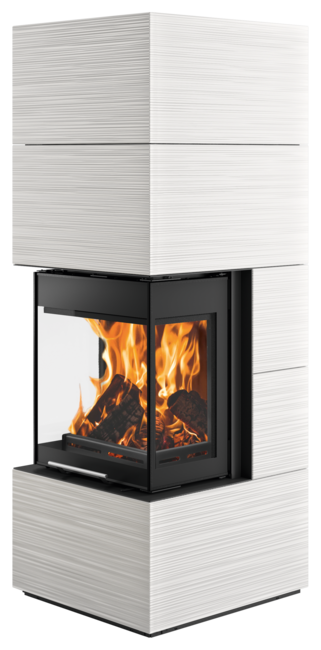

Club UH 550 conSTONE white lines

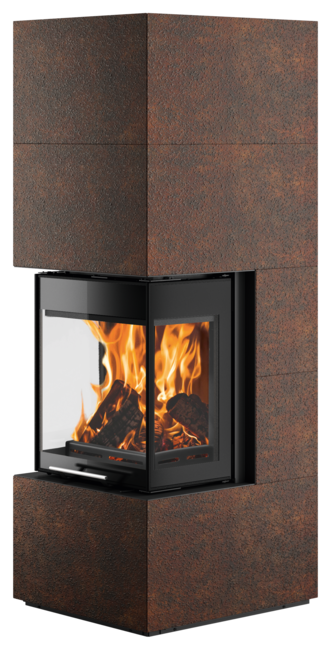

Club UH 550 Sintered Stone corten

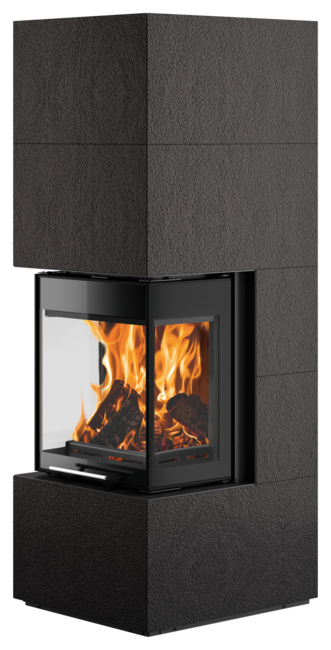

Club UH 550 Sintered Stone slate
Club UH 550 Sintered Stone silk white
- Complete wood stove set
- Set of elements made of lightweight concrete
(Dispersion paint is mandatory!) - Firebox lining from white ceramics
- Closing edge for flush mounted construction
- Standard external combustion air connection
- Freestanding installation possible
The connecting piece for external combustion air supply is not included in the scope of delivery.
Technical details
| Energy efficiency class | A |
| Connection possibility | top/rear |
| Operation with external air supply | rear/bottom |
| Nominal heat output | 8,0 kW |
| Room heating capacity up to | 186 m³ |
| Efficiency | >75 % |
| Length of logs | 33 cm |
| Exhaust gas mass flow | 10,2 g/s |
| Exhaust temperature | 270 °C |
| Required delivery pressure | 0,12 mbar |
Downloads
Order numbers
| Club UH 550 conSTONE slate | 562883 |
| Club UH 550 conSTONE white lines | 562887 |
| Club UH 550 Sintered Stone corten | 562821 |
| Club UH 550 Sintered Stone slate | 562820 |
| Club UH 550 Sintered Stone silk white | 562819 |
